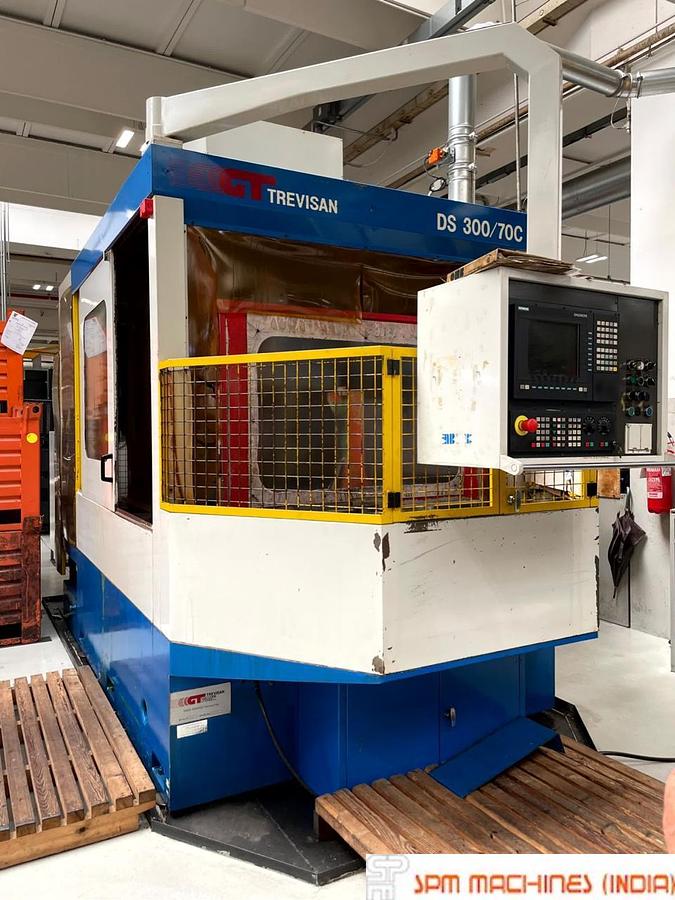

Trevisan DS300/70C Multi Function CNC Machine
or
Call +919559535567
Featured
Specifications
| Manufacturer | Trevisan |
| Model | DS300/70C |
| Year | 2000 |
| Stock Number | 735 |
| Pallet Size | 600 x 600mm |
| X Axis | 680mm |
| Y Axis | 500mm |
| Z Axis | 600mm |

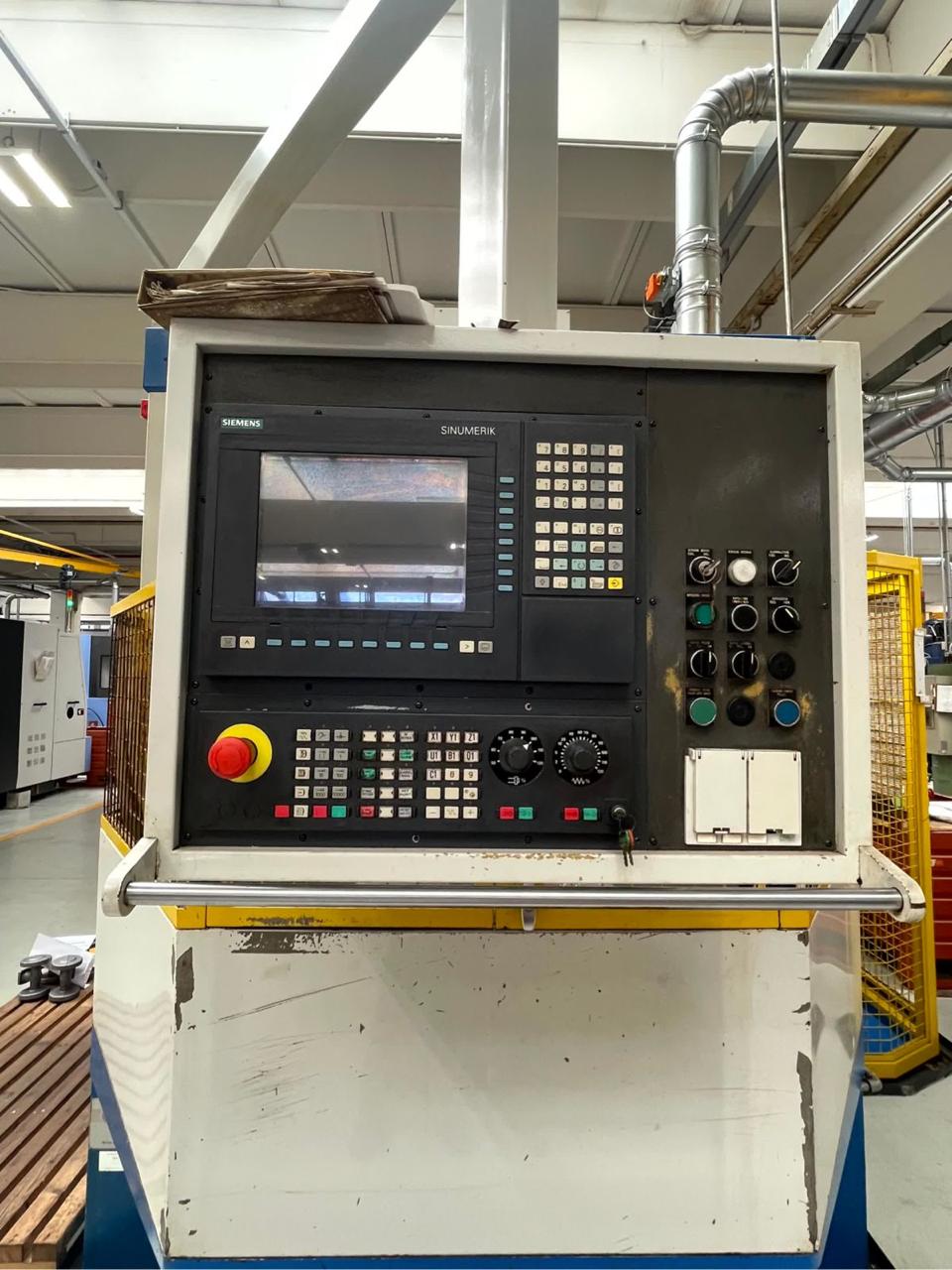

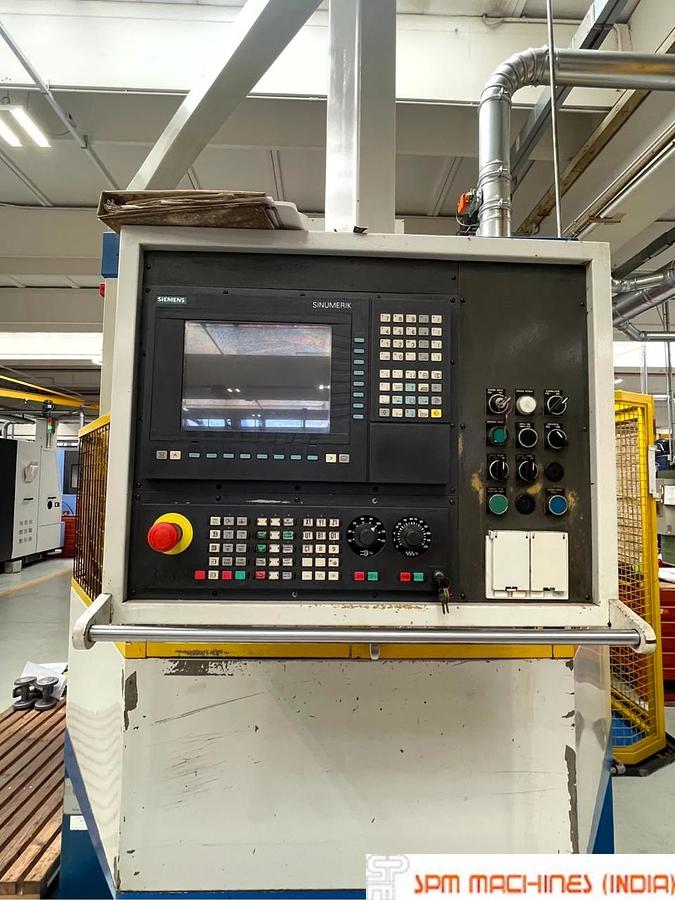

| Controller | Siemens 840D |
| Spindle RPM | 1 to 3000 rpm |
| Spindle Motor Power | 22Kw |

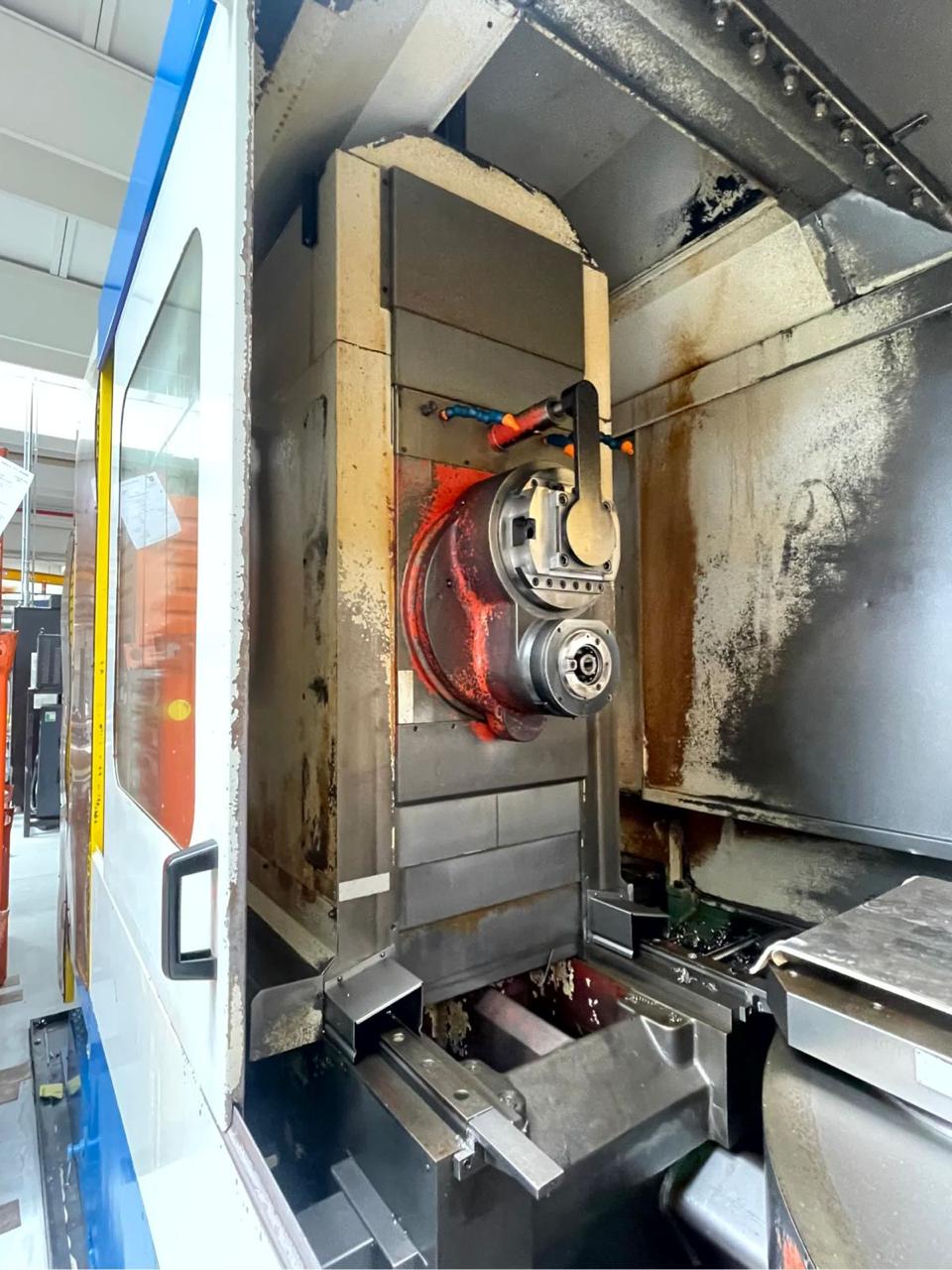

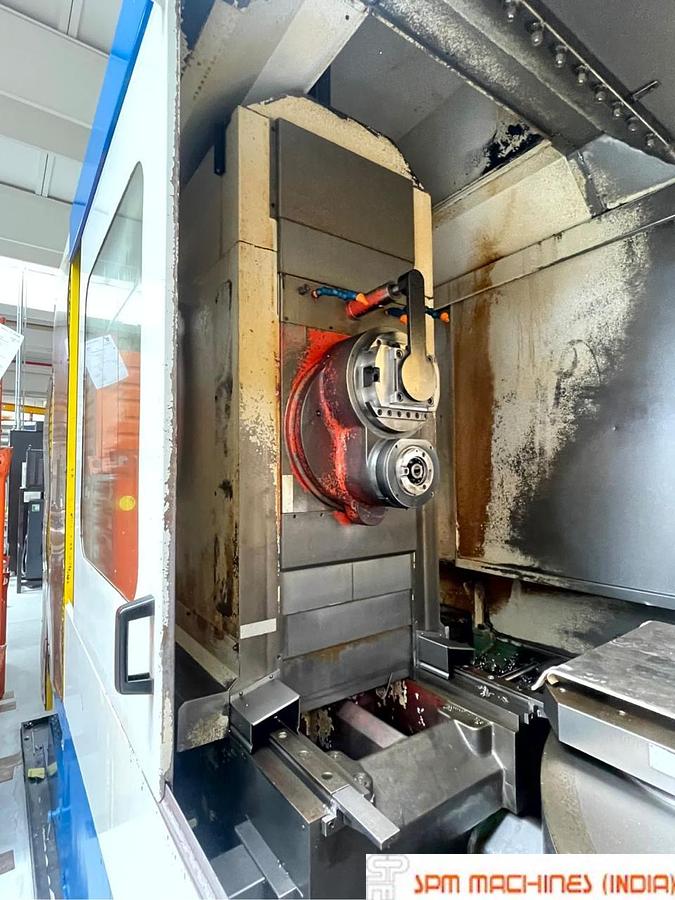

| Turning Head | 300mm |
| Turning Tool Travel (U) | 70mm |
| Max Turning Head Speed | 750mm |
| Max Weight On Pallet | 900 Kgs |
| Max Swing on Pallets | 800mm |
| Weight | 15 Ton |
| ATC | 46 |
| Chip Conveyor | Yes |
| Tool Holders | Yes |
